Характеристики
This is an unsolicited Power Over Ethernet switch to 8 ports with 10/100Mbps transmission rate , Including 6 unsolicited PoE Ethernet ports and 2 Uplink ports. With an external 110V-240VAC to 15VDC /6A power supply adapter, any one of the 6 port can provide output power, Each ethernet port can provide network transmission speeds of up to 10 / 100Mbps.
1. The function of current protection (It will automatically break off When the input current is high)
2. SPOE Power Supply, Power consumption of the machine is 90W (220V-240V), 65W(110V)
3. Follow the Fast Ethernet protocol of IEEE802.3/ IEEE802.3u (Need to connect our poe splitter first)
4. All ports support Full-duplex mode/Half-duplex mode
5. Automatic MDI/MDI-X wire sequence crossing
6. Store, forward and filtering by Automatic mode
7. Supports data frame transmission with a frame length of 1522 Byte
8. Easy to operation
9. Support the Ethernet mode of energy conservationIt is suitable for all POE devices (DC12-15V) , NonPOE devices , Hikvision,
DAHUA and other brands with 802.3af/802.3at PoE Devices (Need to connect our poe splitter first)

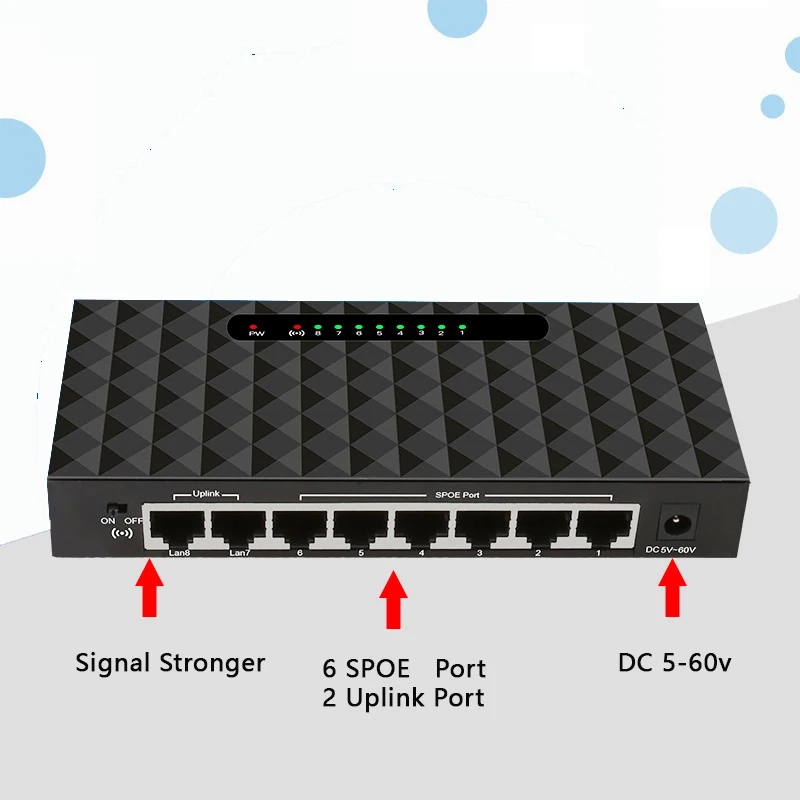

ALL Port: Standard 10/100Mbps Ethernet port. Support 10Mbps Ethernet and 100Mbps Fast Ethernet, can operate in full-duplex or half-duplex mode,must work with 4 pairs UTP Cat5/5e/6 cable.
Power Link Port 1-6: power on pairs 45+,78- pins compliant Powered Devices (PDs)
Power LED: (LED ON: power on. LED OUT: power off）
Yellow Light LINK/ACT: LED ON Indicates the port is connected to a network device and has been started, LED OFF Indicates that this port is not connected to a network device or has not been started.
Protocol : CSMA/CD Ethernet.
Data Transfer Rate:Ethernet: 10Mbps (Half Duplex).
PoE Power on RJ45: 6 SPOE ports Total 1A(Max. 15Watt)
Number of Ports: 8 x 10/100Mbps Auto-Negotiation RJ45 ports
AC Power Input： 15V/6A ， 90W
Temperature: Operation Temperature:0 ~40 degree (32 ~104) Storage -40 ~70 degree (-40 ~158).
Humidity: Storage Humidity 5%~90% non-condensing, Operating Humidity 10%~90% non-condensing.
Product Dimensions: 130mm L x 70mm W x 23mm H .
RAM Register Capacity: 1.6G bytes per device
MAC Address List: 1K entries per device
Frame Forward Rate: 10Mbps Ethernet: 14880pps/Port , 100Mbps Ethernet: 14880pps/Port
Q: Does the switch have a power supply?
A: Every switch is equipped with a power supply and must be available.
Q: Is this product divided into different broadband operators?
A:The switch is not divided into carriers. Regardless of the brand.
Q: Can the switch also be connected to a switch or router?
A: It is available.
Q: What is the use of this product, can you monitor the shunt?
A:The biggest use of this product is to expand the network port. When the network port is not enough, you can use this product. The switch for surveillance cameras and the switch for the network are the same product.
Q:How to choose Gigabit and 100M? What is the difference? Can a 100M network use Gigabit devices?
A:100 megabytes supports up to 100 megabits of network, 12M/S during LAN transmission, and up to 1000 megabits for gigabit. The LAN is 120M/S. If your broadband network is 100 megabits, then you can choose 100 megabytes. If it is more than 100 megabytes, you must use a gigabit device.
