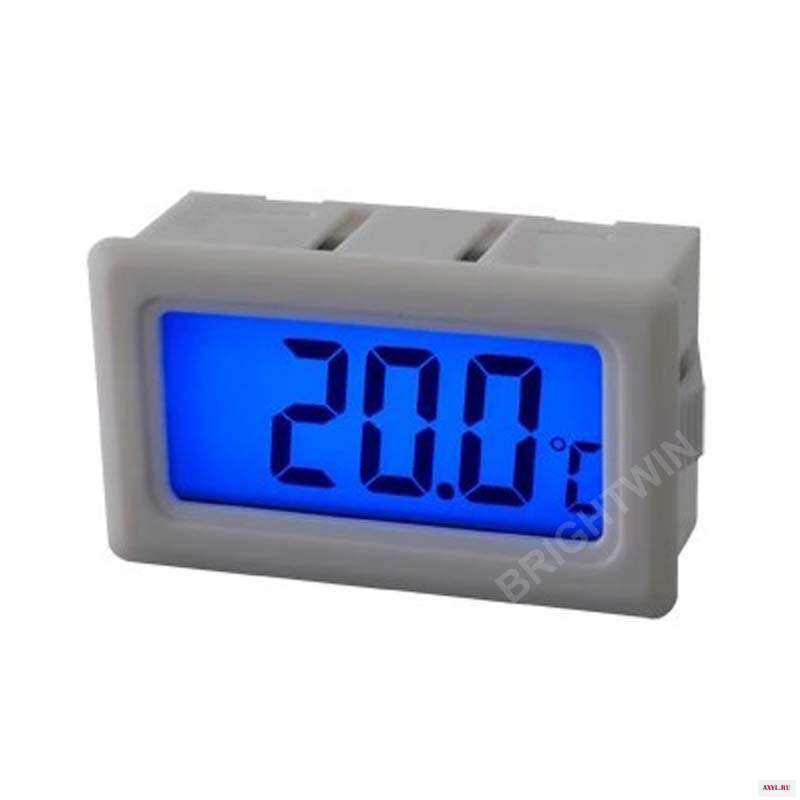

Small Size NTC Temperature Meter Panel-mounted -50 to +110 Cel. Thermometer with LCD Display
Features & Benefits
-Accuracy: 1 ℃, error grade less than 1℃.
-Small size, low cost, high reliable.
-LCD display with backlight, different color.
-High efficient energy saving design.
-Have 1m NTC temperature sensor.
-Panel-mounted embedded shell.
-Typical measuring range: -50 to +110℃, max -50 +160℃(must use high accuracy sensor).
Technical Parameters
Temperature measuring range | -50 to +110℃. max -50 +160℃ (must use high accuracy senor ) | |
Accuracy | 1 ℃ | |
Error grade | less than 1℃ | |
Display | LCD display, light yellow and blue backlight optional | |
Operation power supply | 5VDC | |
External shell size | 48x28x18mm | |
Embedded cut-out size | 46x26mm | |
Operating temperature | -10 to +50℃ | |
Storage temperature | -25 to +65℃ | |
Humidity | 85%. R.H. non-condensation |
BRIGHTWIN NTC Temperature Meter Thermometer package including:
1 Lot (2 units) x Original NTC Temperature Meter Thermometer with 1Meter NTC Sensor
Light Yellow Backlight Type
Blue Backlight Type
