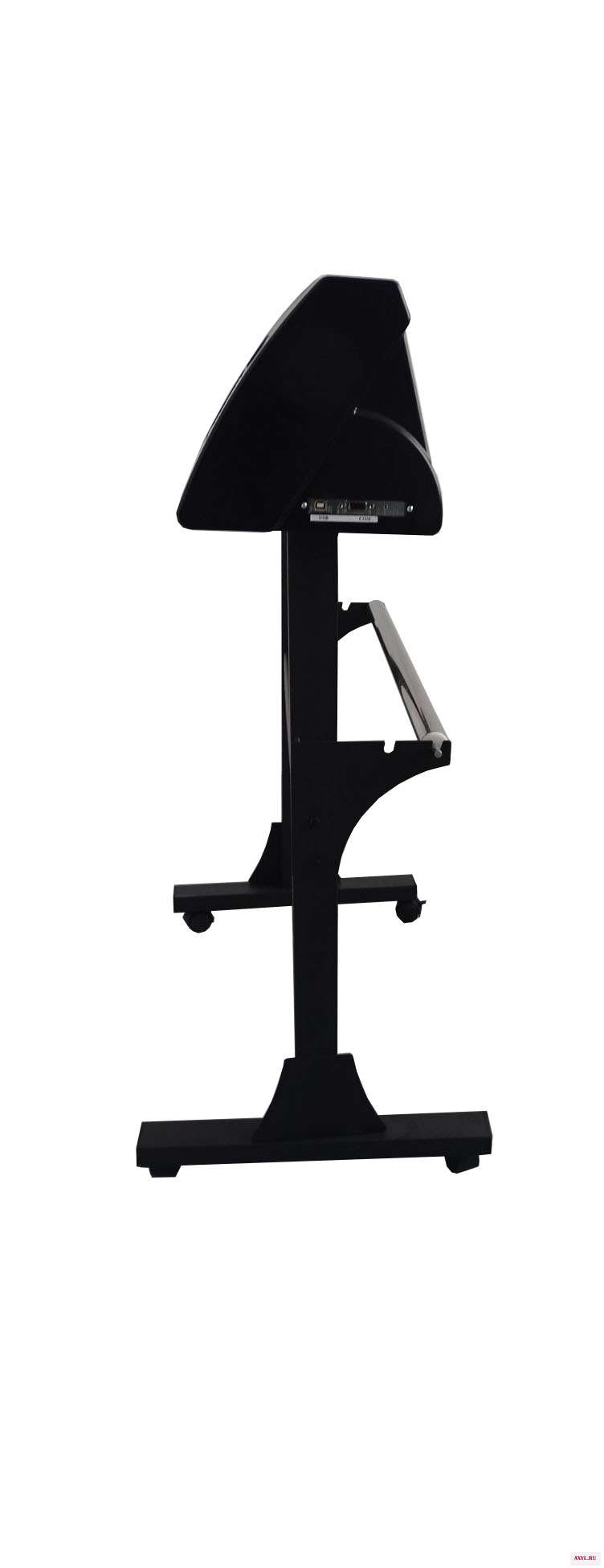

KH-1350 1350mm Black Manual Contour Cutting Plotter Machine With Usb Socket | - 71005003843014459

Характеристики

Advantages and features:

1.high accuracy
2.The media handling system is fully adjustable.It handles media on standard cores and resolves media drifting and alignment problems to ensure better tracking
3. All metal carriage,heavy-duty and higher cutting accuracy
4.LCD screen with silicon rubber button for long working life.
5.This model is compatible with many software, Signmaster / Artcut .etc

Applications:

1.this machine is widely used in wall decoration field,make all kinds of vinyl sticker of flower,animal.etc
2.in sign making industry,cut all kinds of heat transfer film.
3.In garment industry, can be used as plotter.
4.For Sand blasting stencil,can be used for making ads,lightbox,3m reflective film,CAD,phone decoration sticker,car sticker.etc cutting thickness no more than 0.5mm.
5.optional function of laser point(red dot) for contour cut.

Material

vinyl adhesive, reflective film, craft paper, sandblast membrane, PET, PP, PVC, PC, wall paper, etc.

Specifications:

Product parameters:
Max. feeding width :1350mm
Max. cutting width : 1260mm
cutting accuracy : +/-0.01mm
Main board:D
Language:CH/EN
Contour type:Manual  contour optional
Accuracy: +/-0.01mm
Feeding accuracy:3M
Interface:USB/COM
Feeding Roller:Al roller
Drive motor:Stepper motor
Carriage:ABS carriage
Speed:20-800mm/s
Force:20-500g
Power supply:AC 85-264V
Machine power: < 100W
Stand:Iron bracket

Packing List:

1 x Cutting Plotter
1 x User's Manual
1 x Artcut Software
1 x Power Cord
1 x Serial Cable
1 x Blades Holder
1 x Pen Holder
1 x USB flash disk
3 x Blades
1 x Stand
