KH-720 or KH-870 Vinyl Cutter Graph Plotter Manual Contour Cutting Machine | - 71005003842619099

Характеристики

Advantages and features:

1.high accuracy
2.The media handling system is fully adjustable.It handles media on standard cores and resolves media drifting and alignment problems to ensure better tracking
3. All metal carriage,heavy-duty and higher cutting accuracy
4.LCD screen with silicon rubber button for long working life.
5.This model is compatible with many software, Signmaster / Artcut .etc

 Applications:

1.this machine is widely used in wall decoration field,make all kinds of vinyl sticker of flower,animal.etc
2.in sign making industry,cut all kinds of heat transfer film.
3.In garment industry, can be used as plotter.
4.For Sand blasting stencil,can be used for making ads,lightbox,3m reflective film,CAD,phone decoration sticker,car sticker.etc cutting thickness no more than 0.5mm.
5.optional function of laser point(red dot) for contour cut.

Material:

 vinyl adhesive, reflective film, craft paper, sandblast membrane, PET, PP, PVC, PC, wall paper, etc.

KH-720 Specifications:

1.Model: KH-720
2.Product parameters:
Max. feeding width :720mm
Max. cutting width : 630mm
Cutting thickness : ≤1mm
Cutter Speed: 10-800mm/s ；
Cutter Pressure: 10-500g
Buffer : 1-4M
LCD display : CN/EN
Real-time Speed adjusting：Support
Interface：COM+USB
Support software:
Signmaster/Artcut
Re-cutting function : Support
Re-cutting accuracy : 0.01mm
Resolution Ratio : 0.0245mm/step
Cache Capacity：1M
Language format : DMPL/HPGL
Voltage : AC90-240V
Weight: 18kg
Dimension(L*W*H): 96 *33 * 42cm
Condition : new

KH-720 Packing List:

Cutting plotter 1Set
Power supply cable 1PC
Blade 1Box
Blade holder 1PC
Pen holder 1PC
Ball pen core 1PC
COM connection cable 1PC
USB cable 1PC
Spanner 1PC
USB driver 1PC

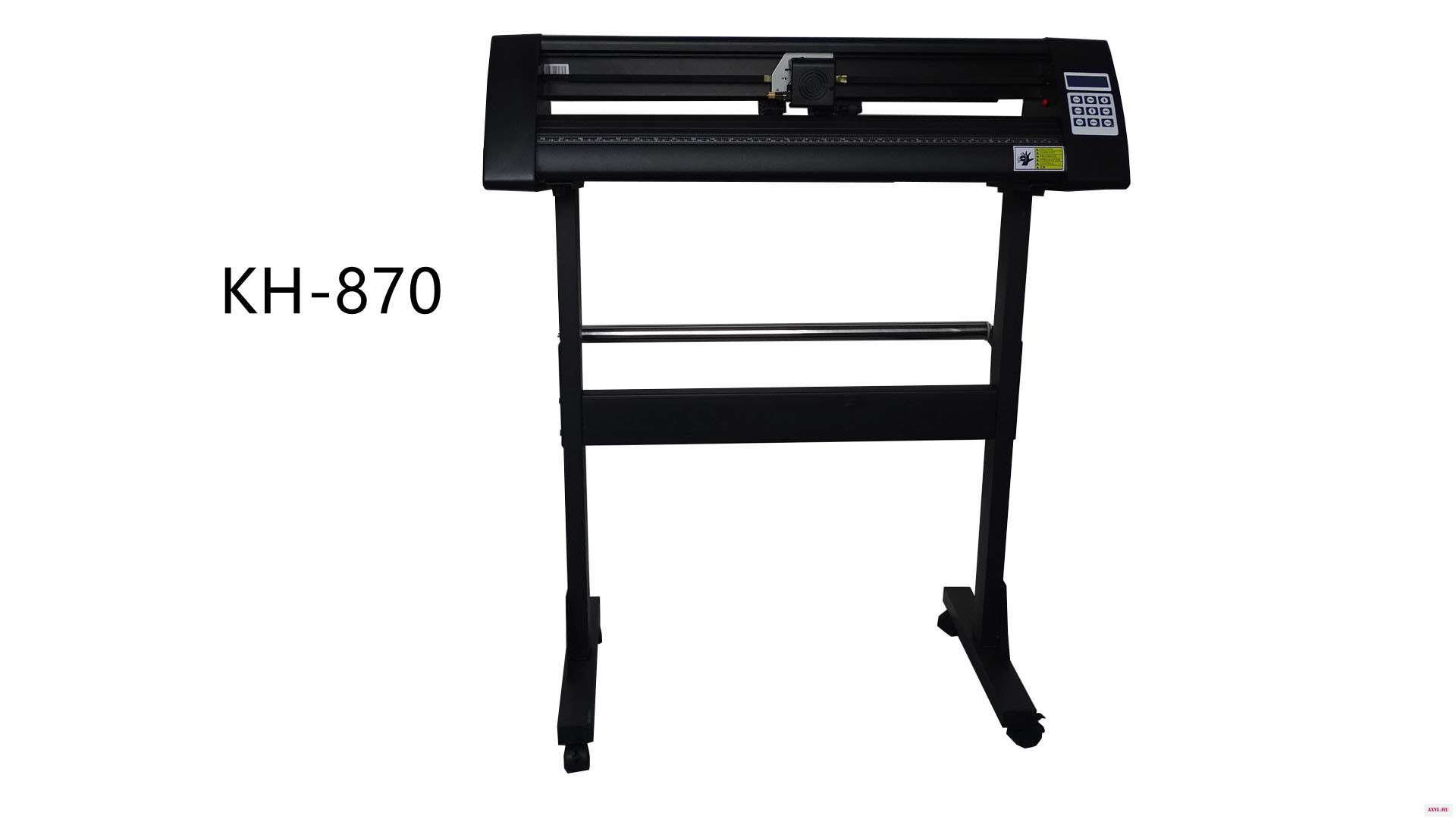

KH-870 Specifications:

Model: KH-870
Product parameters:
Max. feeding width :870mm
Max. cutting width : 780mm
cutting accuracy : +/-0.01mm
Main board:D
Language:CH/EN
Contour type:Manual  contour optional
Accuracy: +/-0.01mm
Feeding accuracy:3M
Interface:USB/COM
Feeding Roller:Al roller
Drive motor:Stepper motor
Carriage:ABS carriage
Speed:20-800mm/s
Force:20-500g
Power supply:AC 85-264V
Machine power: < 100W
Stand:Iron bracket

KH-870 Packing List:

1 x Cutting Plotter
1 x User's Manual
1 x Artcut Software
1 x Power Cord
1 x Serial Cable
1 x Blades Holder
1 x Pen Holder
1 x USB flash disk
3 x Blades
1 x Stand
