12В/24В/36В/48В 500/800Вт Контроллер постоянного тока с щетками для электрического велосипеда, ящик для велосипеда-самоката и аксессуаров для электровелосипеда, горячая распродажа на - 71005003785860772

Характеристики

Description:

Product Name: Motor Brushed Controller

Material: Aluminum alloy

Rated voltage: 12V, 24V, 36V, 48V

Under-voltage protection: 20 + 0.5V, 31.5 + 0.5V, 42 + 0.5V

Matching motor: 500 W motor

Applicable to: electric bicycle, scooter, etc.

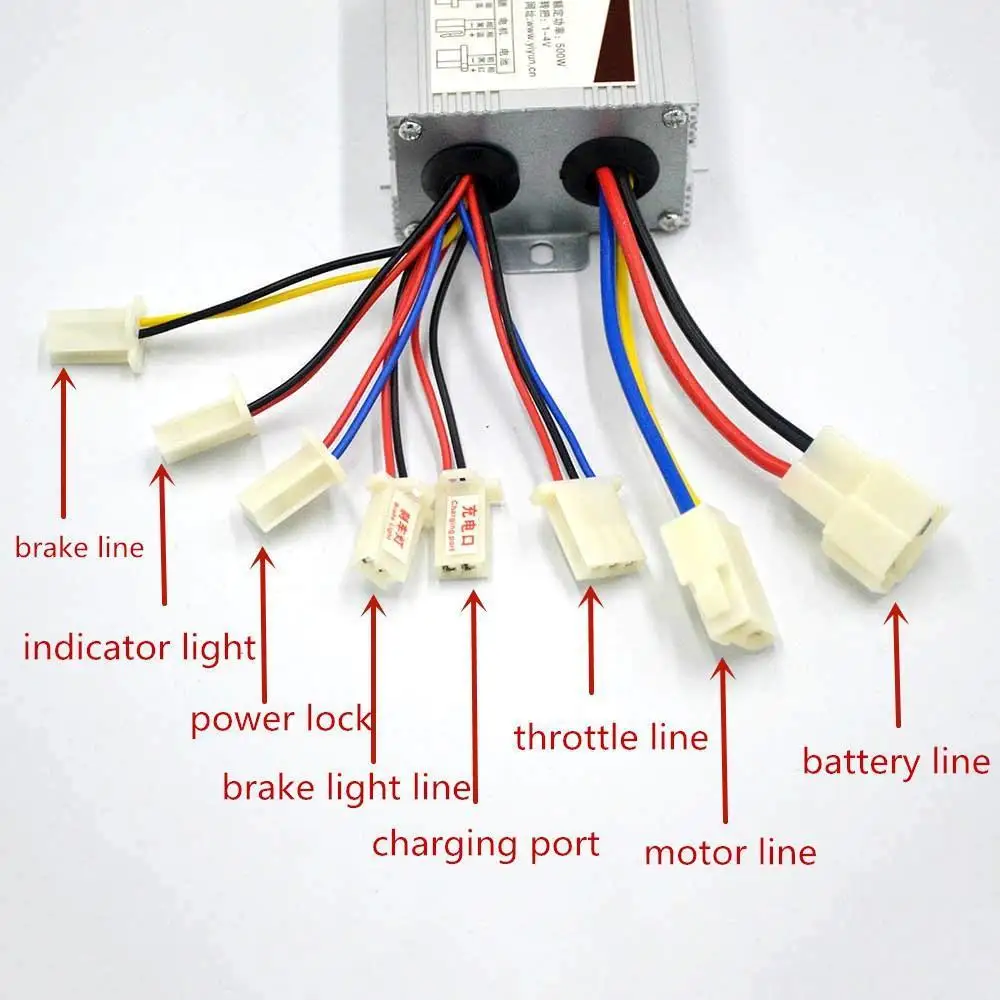

Controller is 8 connectors, if your controller is 7 connectors, that is one less door lock connector than my 8 connector controller. When installing my controller, you need to connect the red and blue wires on the door lock connector of my controller.

Special note: The power cord should be connected strictly according to the name on the connector. It must not be misconnected, and the wrong connection will burn out.

Package included:

1 * Motor Brushed Controller

Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
