2P 36mm Din Rail Dual LED Voltage Current Meter Voltmeter Ammeter AC 80-300V 250-450V 0-100A C7AC | Инструменты - 71005002382460660

Характеристики

Features:

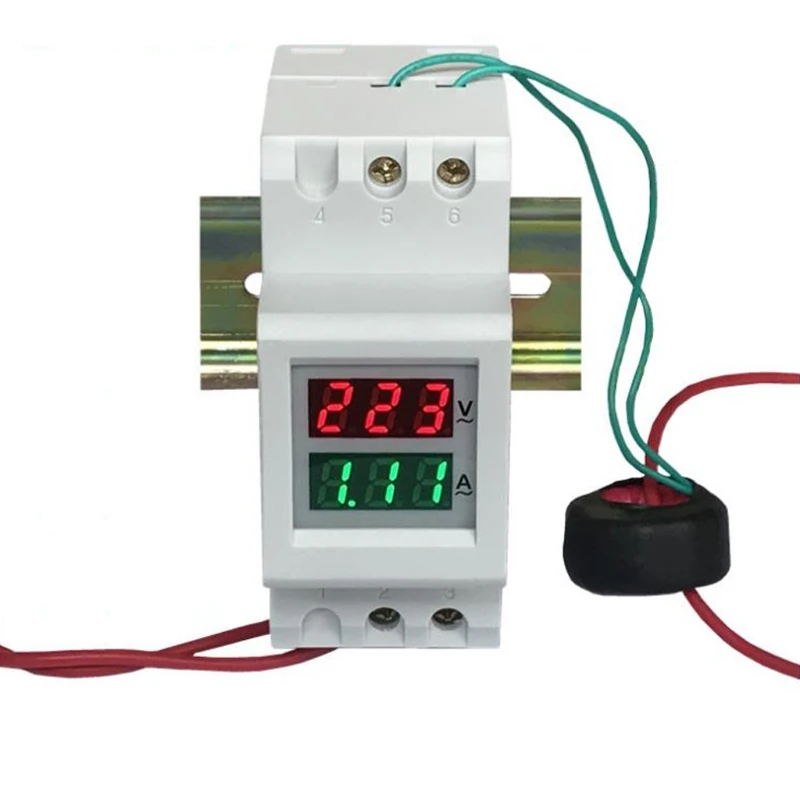

Din-rail digital meter can measure and display AC voltage, AC current at the same time
A precision small current transformer for the meter is provided

Wiring:
1.Connect the measuring voltage to the 2 and 3 terminal.

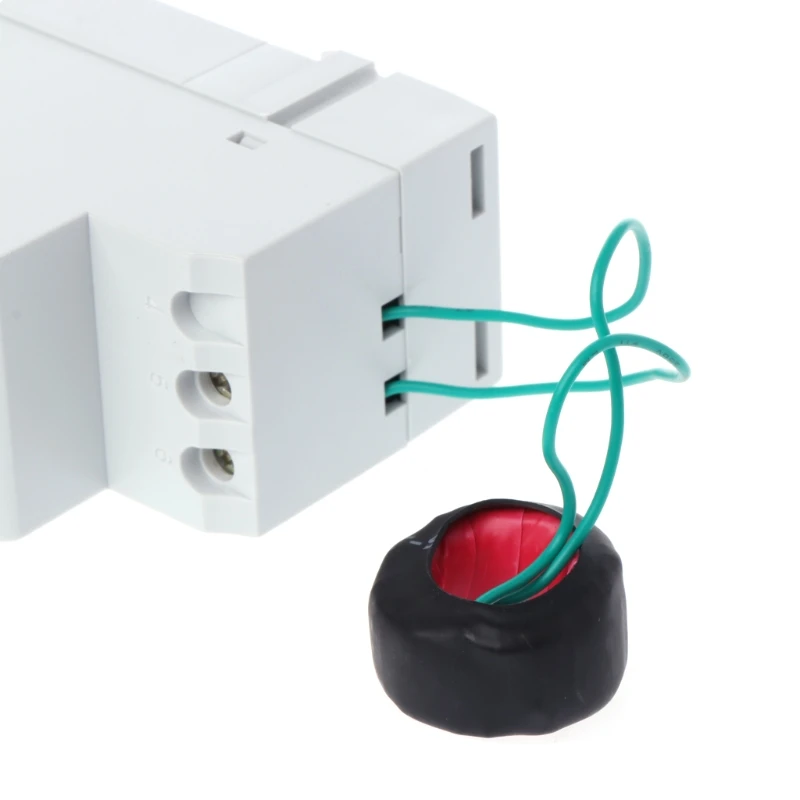

2.Connect the two green wires of secondary current transformer to the 5 and 6 terminal. make the wire (one of the wire (battle line or zero line ) )which connect to the load ) through the hole of current transformer, the direction do not affect the result.
The meter can only use to measure 50Hz/60Hz AC city electricity, it will be destroyed when use to measure square wave, output of inverter and correction sine wave

Specifications:
Accuracy: 1%±2 words
Display mode: 0.32-inch Led ( AC voltage with red led and AC current with green led)
AC voltage Range: AC 80.0-300.0V/ AC 250.0-450.0V
AC Current Range: AC 0-99.9A (when measure current lower than 10A, the accuracy is 0.01A, when measure current between 10.0 and 99.9A, the accuracy is 0.1, the accuracy auto-change)
Power supply:<0.2VA
Speed: 2 per second
Installation: 35mm Din rail
Size: 37x87x64mm
Quantity: 1 Pc

Note:
1.Transition: 1cm=10mm=0.39inch
2.Please allow 0-3cm error due to manual measurement. pls make sure you do not mind before you bid.
3.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes:
1 Pc x Voltmeter Ammeter
1 Pc x User Manual
